Full front service
Modules, cabling, and feeder access are designed from the front. That is required when a gym display is mounted tight to a wall with no rear aisle.
Home / Gymnasium LED Displays / Lewisville
Gymnasium walls ยท Texas
LED Displays for Gymnasiums in Lewisville, Texas
XL AV specifies LUXVISION PROLUX Rugged for LED Displays for Gymnasiums in Lewisville, Texas.
LUXVISION PROLUX Rugged
PROLUX Rugged is LUXVISION's Canadian-made indoor dvLED platform for gymnasiums, recreation centres, schools, and other impact-prone indoor rooms.
Known current facts: P3.3 and P4; 16:9 cabinets at 1280 by 720 mm and 1600 by 900 mm; quarter-turn metal-to-metal modules; impact-resistant LED mask and perimeter trim; fanless Mean Well power supplies; no hub-board architecture; operating brightness about 2,100 nits; 7-year warranty context including air-inflated ball impact.

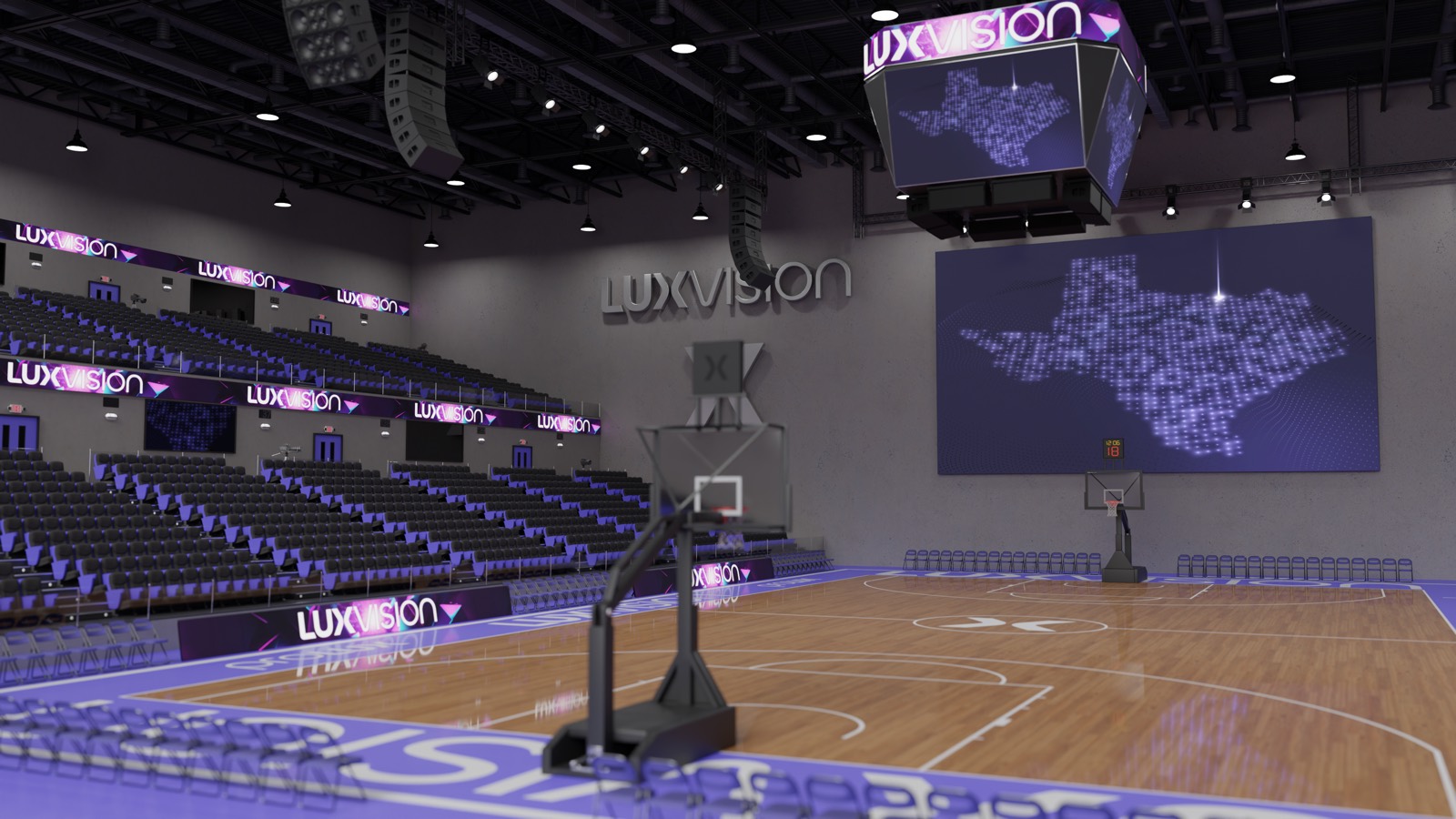

Gymnasium LED displays in Lewisville
XL AV specifies LUXVISION PROLUX Rugged for gymnasium LED displays in Lewisville, Texas. The product is built for indoor sports rooms: impact-resistant mask and trim, quarter-turn metal-to-metal modules, and full front service.
Gym walls are used for PE, games, assemblies, and rentals. PROLUX Rugged is a multi-purpose indoor canvas, not a game-night-only scoreboard.
Typical uses
- Basketball and volleyball
- PE and open gym
- Assemblies and graduations
- Community rentals
PROLUX Rugged
PROLUX Rugged
Fanless thermal design
Gyms collect dust. Fans ingest that dust and then fail. PROLUX Rugged uses the cabinet as a heat sink with Mean Well supplies. There is no cooling fan in the documented architecture.
Under-driven, efficient LEDs
Pixels capable of about 3,900 nits are operated around 2,100 nits. The intent is less heat and less electrical infrastructure than driving the diodes to their maximum.
Repairable hardware
Locking power and data cables replace hub boards. Neutrik-style power and Cat6 keystone data keep field repairs inside normal technician practice.
Canadian-made PROLUX
PROLUX is LUXVISION's Canadian-made family. XL AV specifies it as a North American-supported gym platform.
Impact-resistant face and trim
A protective LED mask keeps air-inflated sports balls off the diodes. Micro-grooves help perceived contrast. Perimeter trim protects edges as part of the mechanical design.
- Canadian-made PROLUX Rugged indoor dvLED
- Known pitches: P3.3 and P4
- Cabinets: 1280 by 720 mm (~58") and 1600 by 900 mm (~72"), both 16:9
- Common 16:9 walls from about 116" to 347" diagonal by arraying cabinets
- Operating brightness about 2,100 nits (LED capability ~3,900 nits, under-driven)
- Up to 16-bit colour and ~4,200 Hz refresh in the documented generation
- Fanless Mean Well power supplies; no hub-board architecture
- 7-year warranty context including air-inflated ball impact
Questions about PROLUX Rugged
What pixel pitches are available?
Known current PROLUX Rugged pitches are P3.3 and P4 in 16:9 cabinets (1280 by 720 mm and 1600 by 900 mm).
How are spare modules handled?
The service model is onsite spares: swap a module to restore the wall, return the failed part, and replenish stock.
Does basketball or volleyball impact void the warranty?
Air-inflated sports-ball impact is part of the current 7-year PROLUX Rugged warranty context. Hard objects, vandalism, and outdoor weather are not the same thing. This is an indoor gym product.
How is the wall serviced if it is mounted tight to a gym wall?
The architecture is full front service, including feeder cabling.
Is this the same as LUXVISION ECOLUX or COB product?
No. PROLUX Rugged is the Canadian-made sports and gym platform with mechanical impact protection. ECOLUX COB and outdoor families are different architectures.
